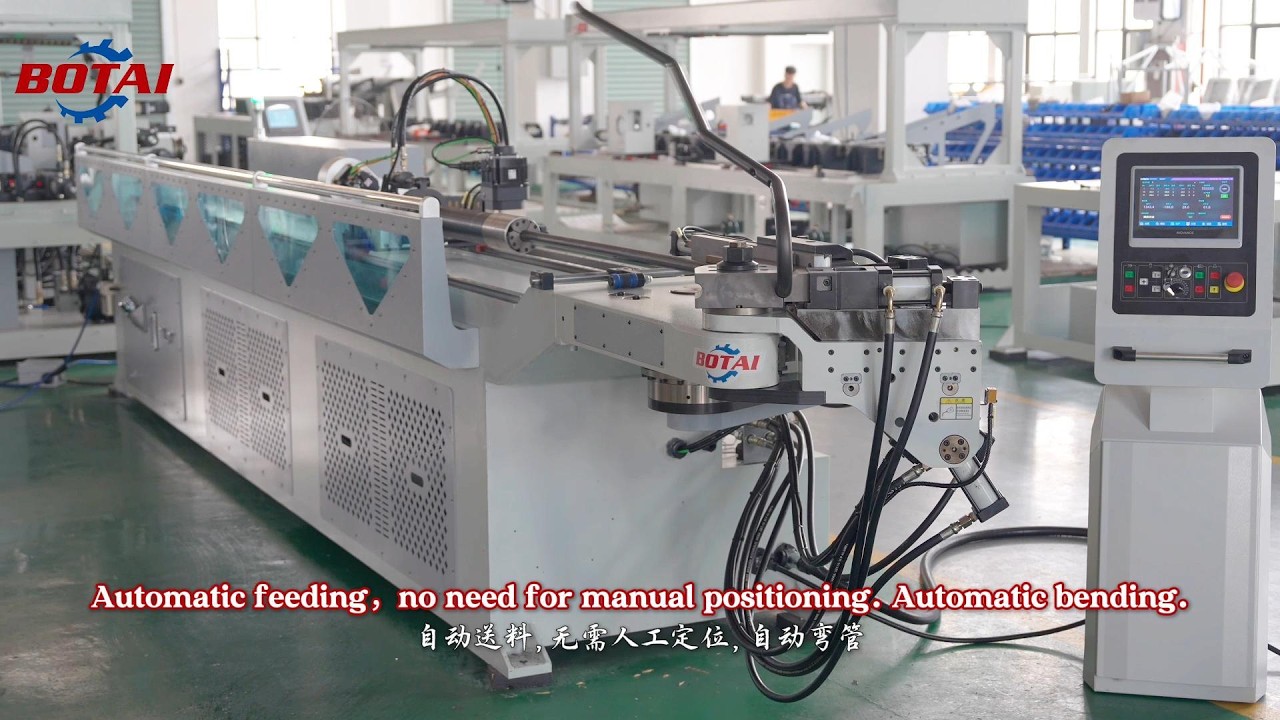

BOTAI medium CNC tube bending machines are developed for medium diameter tube processing, covering tube sizes from 38mm to 65mm.
Compared with compact tube benders, this series provides increased bending capacity and stronger mechanical structure while maintaining flexible CNC control and configuration options.
The medium CNC tube bending machine series includes CNC38, CNC50 and related models. Different configurations can be selected according to tube diameter, bending complexity and production requirements.
The CNC system allows precise control of tube feeding, rotation and bending operations.
Available configurations include:
The servo configuration can be customized according to tube geometry, bending requirements and production automation level.

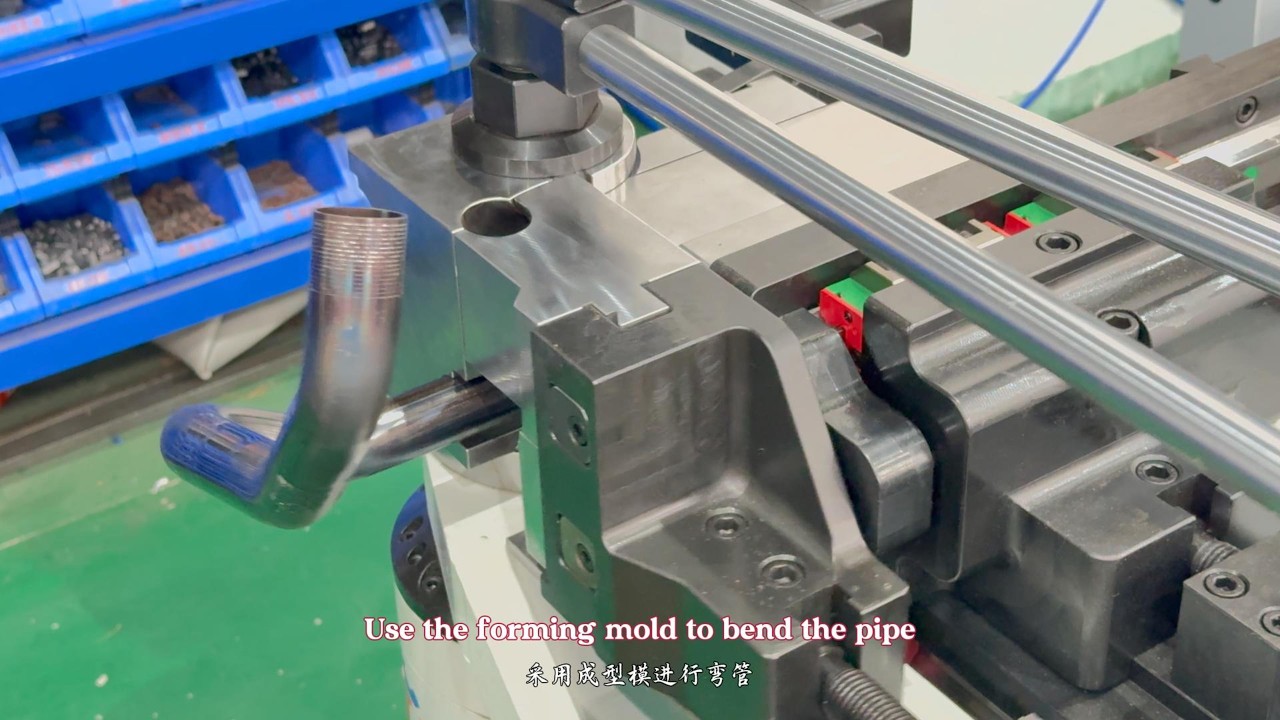

For different bending requirements, BOTAI provides customized multi-layer tooling configurations.
The tooling design can be optimized according to:
Multi-layer die solutions allow efficient production of complex tube bending components with improved flexibility.
The machine adopts a rigid structure, precision transmission system and CNC control technology to ensure stable bending accuracy during continuous operation.
BOTAI medium CNC tube bending machines provide a reliable solution between small precision tube benders and heavy-duty large diameter bending machines.
| Model | 38CNC | 50CNC | 65CNC | |
|---|---|---|---|---|
| Max bending diameter | Iron | 38.1mm*2mm | 50.8mm*2mm | 65mm*2mm |
| Stainless | 38.1mm*1.2mm | 50.8mm*1.2mm | 65mm*1.5mm | |
| Max bending radius | 150mm | 220mm | 250mm | |
| The defference of R in multi-layer mold | 50mm | 70mm | 70mm | |
| Max bending angle | 190° | 190° | 190° | |
| Max effective length of the core | 3300mm | 3300mm | 4800mm | |
| Bending speed | Max.180° | Max.160° | Max.90° | |
| Rotation speed | Max.280° | Max.260° | Max.200° | |
| Feeding speed | Max.1000mm | Max.900mm | Max.700mm | |
| Bending accuracy | ±0.03° | ±0.03° | ±0.03° | |
| Rotation accuracy | ±0.03° | ±0.03° | ±0.03° | |
| Feeding accuracy | ±0.03mm | ±0.03mm | ±0.03mm | |
| Motor power | 5.5kw | 5.5kw | 7.5kw | |
| Oil volume | 150L | 170L | 220L | |
| Opearting height | 1050mm | 1050mm | 1150mm | |
| Feeding servo motor | 1.0kw | 1.0kw | 2kw | |
| Rotation servo motor | 0.4kw | 0.75kw | 0.75kw | |
| Bending servo motor | 3.5kw | 5kw | 7kw |
