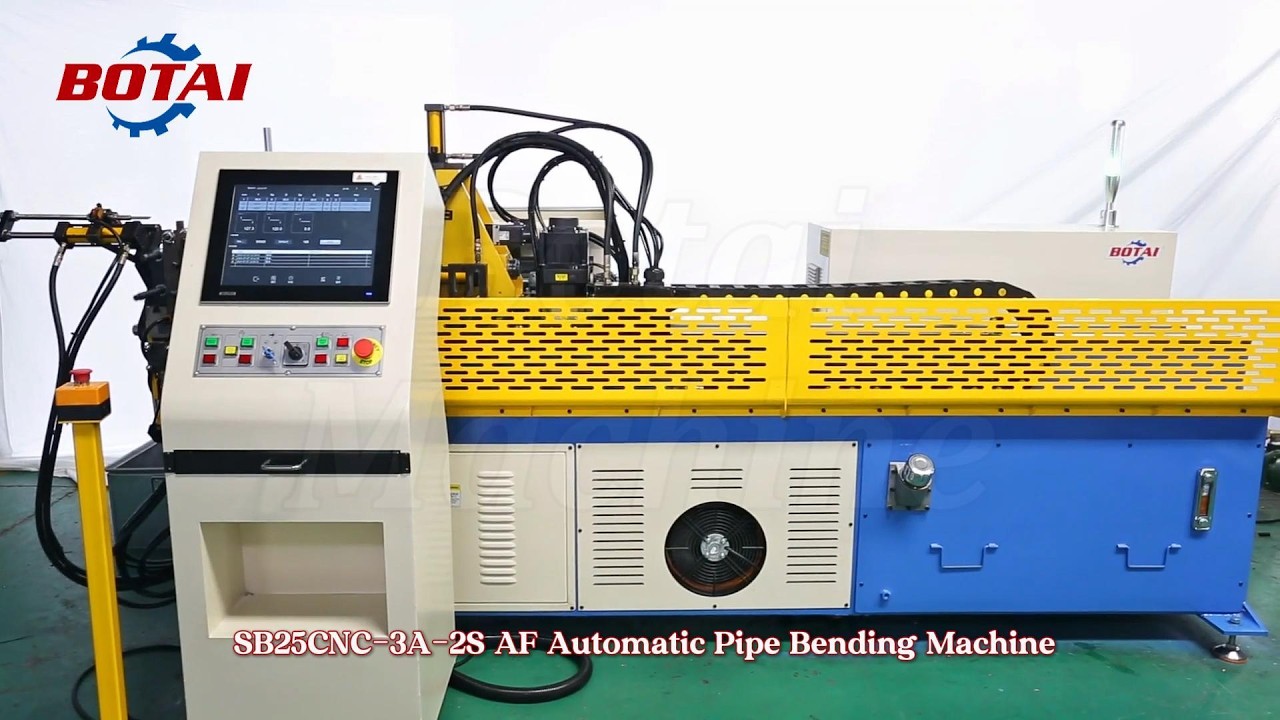

BOTAI small CNC tube bending machines are designed for precision tube bending from 12mm to 25mm diameter. The compact structure and CNC control system provide stable performance with flexible configuration options for different bending requirements.
The series includes CNC12, CNC18 and CNC25 models. According to tube specifications and bending complexity, the machine can be configured with different servo axes, bending functions and mould solutions.
BOTAI CNC tube bending machines support customized servo configurations to achieve accurate control of different bending processes.
Different tube products may require different bending dies and tooling structures. BOTAI provides customized multi-layer tooling solutions according to:
The flexible tooling design allows one CNC tube bending platform to support different production requirements.
With a rigid machine structure, precision transmission system and CNC control technology, BOTAI small CNC tube bending machines provide repeatable bending accuracy and reliable operation.
| Model | 12CNC | 18CNC | 25CNC | |
|---|---|---|---|---|
| Max bending diameter | Iron | 12.7mm*2mm | 18mm*2mm | 25mm*2mm |
| Stainless | 12.7mm*1.2mm | 18mm*1.2mm | 25mm*1.2mm | |
| Max bending radius | 60mm | 80mm | 120mm | |
| The defference of R in multi-layer mold | 20mm | 30mm | 40mm | |
| Max bending angle | 190° | 190° | 190° | |
| Max effective length of the core | 2200mm | 2200mm | 2800mm | |
| Bending speed | Max.220° | Max.220° | Max.210° | |
| Rotation speed | Max.300° | Max.300° | Max.280° | |
| Feeding speed | Max.1250mm | Max.1250mm | Max.1200mm | |
| Bending accuracy | ±0.03° | ±0.03° | ±0.03° | |
| Rotation accuracy | ±0.03° | ±0.03° | ±0.03° | |
| Feeding accuracy | ±0.03mm | ±0.03mm | ±0.03mm | |
| Motor power | 4kw | 4kw | 4kw | |
| Oil volume | 100L | 100L | 100L | |
| Opearting height | 1050mm | 1050mm | 1050mm | |
| Feeding servo motor | 0.4kw | 0.75kw | 0.75kw | |
| Rotation servo motor | 0.1kw | 0.4kw | 0.4kw | |
| Bending servo motor | 0.75kw | 1.0kw | 1.5kw |
We will configure the appropriate equipment/production line based on the specifications of you products. After you company gets in touch with us, we will provide you with accurate infomation and quotations.
1 set.
The fully automated production line takes 90 working days.
For fully automated single machines with a quantity of ≥5, it takes 60 working days.
We provide instructions. After the transaction is completed, we will provide the corresponding customs clearance documents: CI, PL, BL, CO (the certificate of origin, if the customer requires it)
We are very close to the airports in Shanghai, Wuxi, and Nantong.If you plan to visit our factory, you can contact us and we will arrange for someone to pick you up at the airport.
1 year.
We accept T/T.
