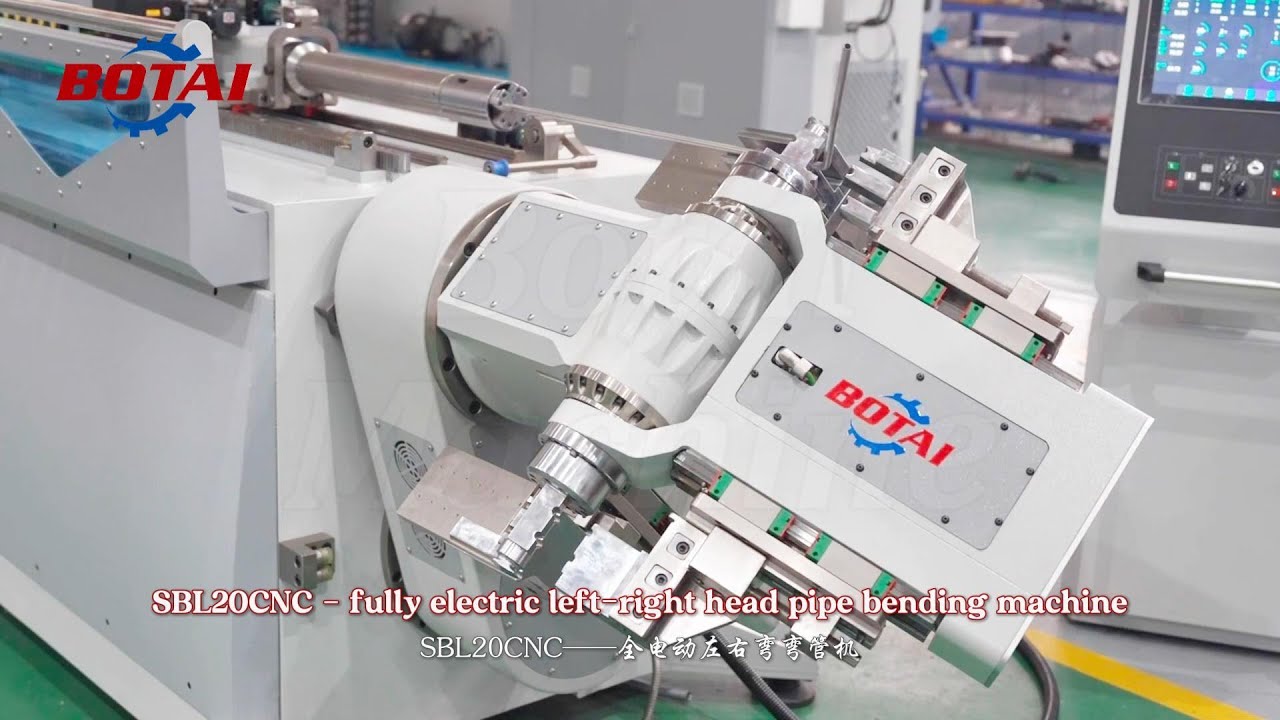

The All Electric Rotary Head Tube Bending Machine is engineered for manufacturers who require maximum flexibility when producing complex tube geometries. Unlike conventional CNC tube bending machines with fixed bending heads, the rotary head can rotate automatically during the bending process, providing greater freedom for multi-plane and left- & right-hand bending operations.
By rotating the bending head instead of repositioning the work piece manually, the machine effectively minimizes machine head interference, making it ideal for complicated tube shapes that are difficult or impossible to produce on standard CNC tube benders.
Powered by a fully servo-electric control system, every movement is precisely synchronized to ensure high repeatability, smooth operation, and consistent bending quality. The all-electric design also reduces maintenance requirements, improves energy efficiency, and eliminates the instability associated with hydraulic systems.
Whether producing automotive exhaust systems, furniture frames, HVAC tubing, medical equipment, or other precision tubular components, the rotary head configuration significantly improves production efficiency while maintaining exceptional bending accuracy.
| Item | 12CNC | 18CNC | 25CNC | |
|---|---|---|---|---|
| Max pipe diameter | Iron pipe | 12mm*2mm | 18mm*2mm | 25mm*2mm |
| Stainless pipe | 12mm*1.2mm | 18mm*1.2mm | 25mm*1.2mm | |
| The number of layers | NS | NS | NS | |
| Max bending radius | 60mm | 80mm | 120mm | |
| The defference of R in multi-layer mold | 30mm | 35mm | 40mm | |
| Max bending angle | 190° | 190° | 190° | |
| Max effective length of the core | 2000mm | 2200mm | 2200mm | |
| Bending speed | Max.220° | Max.220° | Max.220° | |
| Rotation speed | Max.320° | Max.320° | Max.320° | |
| Feeding speed | Max.1200mm | Max.1200mm | Max.1200mm | |
| Bending accuracy | ±0.03° | ±0.03° | ±0.03° | |
| Rotation accuracy | ±0.02° | ±0.02° | ±0.02° | |
| Feeding accuracy | ±0.03mm | ±0.03mm | ±0.03mm | |
| Machine-head rotation speed | 180°/sec | 180°/sec | 180°/sec | |
| Machine-head rotation accuracy | ±0.03° | ±0.03° | ±0.03° |
We will configure the appropriate equipment/production line based on the specifications of you products. After you company gets in touch with us, we will provide you with accurate infomation and quotations.
1 set.
The fully automated production line takes 90 working days.
For fully automated single machines with a quantity of ≥5, it takes 60 working days.
We provide instructions. After the transaction is completed, we will provide the corresponding customs clearance documents: CI, PL, BL, CO (the certificate of origin, if the customer requires it)
We are very close to the airports in Shanghai, Wuxi, and Nantong.If you plan to visit our factory, you can contact us and we will arrange for someone to pick you up at the airport.
1 year.
We accept T/T.
